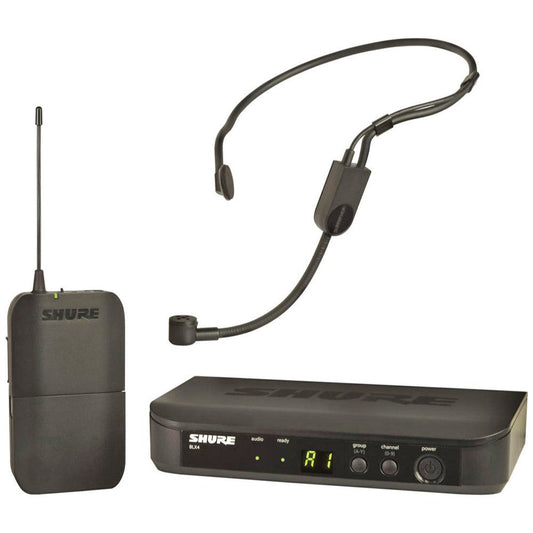

Shure BLX14A/P31 In-Ear Wireless Microphone

The Shure BLX14A/P31 microphone is designed with international standards in mind. State-of-the-art condenser technology for wide frequency response and high noise cancellation. Realistic sound quality with compact design, flexible movement. Quality when used to sing karaoke sounds good and true. Customers can sing and perform like a real singer at the same time.

Microphone Shure BLX14A/P31 is very suitable in event organization, as a bridge between employees, singers and managers because it can transmit and receive information remotely. This is a perfect 3-in-1 combination. Using this type of microphone, customers can move around or go far without fear of entanglement like wired microphones. In addition, the sound quality through the mic is also removed from noise, selecting clean waves and amplifying to the outside to create a clear and harmonious sound. Vocals through the microphone BLX14A/P31 are not inferior to a microphone dedicated to karaoke.

Micro Shure BLX14A / P31 uses mainly batteries, with a small operating capacity, so it ensures battery saving while saving electricity during use.

Shure BLX14A/P31 products have a uniform black design and color that brings high aesthetic value. All 3 devices in the kit have a compact design.

Transmitter BLX1

Features a lightweight, durable, ergonomic and adjustable gain design. For use with the BLX® Wireless System.

Fast and easy receiver frequency matching

TQG connection for use with Shure lavalier, headphones, earphones and instrument microphones and guitar cables

Easy to access on/off button

Receiver BLX4

The durable BLX4 features simple setup, intuitive controls, and microprocessor-controlled internal antenna microprocessor. One-touch QuickScan frequency selection quickly determines the best open frequency in case of interference. For use with the BLX® Wireless System.

Headset microphone PGA31.

The PGA31 performance headset microphone is intended for multiple uses, speaking and performance use is a permanent electret condenser microphone. Designed to provide maximum versatility and reliable performance in a wide range of conditions at an affordable price point, the PGA31 is compatible with any Shure wireless bodypack system with a TA4F (TQG) connector.

Available as an inclusion option for many systems, it also makes for a viable alternative for use in existing systems. The wearable design offers comfort and safety for hands-free operation in any situation, while the unidirectional (cardioid) pickup pattern provides excellent shaft rejection for responsiveness. higher when using the stage monitor.

Specification of SHURE PGA31

Wireframe headphones are the right and safe choice for multi-function players and energetic singers

Permanently charged electret condenser element for detailed, crisp vocals

Unipirectional (cardioid) polar pattern eliminates unwanted noise for improved sound quality and increased feedback threshold

Flexible gooseneck design and discrete tuning options optimize microphone positioning for further source isolation

Includes windshield impregnated pliers for clear and intelligible sound reproduction
TA4F (TQG) connector fully integrates with existing Shure bodypack system

Available with a wide range of Shure wireless systems, renowned for their ease of use and reliable performance

Includes windshield, noise, breath and wind sounds for clear and intelligible sound

Frequency range tuned for great vocal sound

Shure precision engineering for durability and performance

Specifications of SHURE BLX14A/P31

Shure BLX4

• Output
• 1x XLR Output
• Output 1x 1/4" (6.35 mm)
• Output Impedance
• XLR: 200 ohms
• 1/4": 50 ohms
• Audio output level
• XLR connector: -27 dBV to 100 kOhms load (Reference +/- 33 kHz with 1 kHz Tone)
• 1/4": -13 dBV into 100 kOhms load (Reference +/- 33 kHz with 1 kHz Tone)
• RF Sensitivity: -105 dBm for 12 dB SINAD, typical
• Image rejection: > 50 dB, typical
• Case: ABS
• Power requirement: from 12 to 15 V DC @ 160 mA, powered by External Power (Active Tip)
• Dimensions: 1.5 x 7.4 x 4.1" (40 x 188 x 103 mm)
• Weight: 8.5 oz (241 g)

SHURE BLX1

• Analog/Digital: Analog
• Transmit frequency range: 542-572MHz
• Form Factor: Bodyback
• Connection Type: 1 x TA4M
• System: 300 ft operating range. Vision

SHURE PGA31

• Microphone type: Electret Condenser
• Frequency range: 60 to 20,000 Hz
• Polar pattern: Unidirectional (Cardioid)
• Output impedance (@ 1 kHz, typical): 600
• Audio output level: -50 dBV/Pa
• Signal-to-noise ratio[1] (@ 1 kHz): 66 dB
• Maximum SPL [1] (load 1000,, @ 3% THD): 145.0 dB
• Dynamic Range[1] (@ 1 kHz, 1000 Ω load): 117.0 dB
• Equivalent output noise [1] (typical, A-Weighted): 28 dB
• Power supply: +5 V DC (nominal), up to 10 V (DC offset)
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 for battery 1
• Cable: 1.3 m (50 in.)
• Connection: TA4F
• Weight: 45 g (1.59 oz.)
